PEX Fittings Explained for Ladera Ranch Homes: Expansion, Crimp and Push-Fit
Not all PEX connections are equal. Expansion, crimp and push-fit fittings explained, and what to ask for in a Ladera Ranch repipe.
Ladera Ranch homes are newer than most of South County. Many were built between about 1999 and 2010 in villages like Covenant Hills, Avendale, Terramor and Flintridge. Some have copper, some have PEX, and some have a mix. Whether you are fixing a leak or planning a repipe, one question comes up often: what kind of PEX fittings are behind the wall, and does it matter?
It does. The tubing gets most of the attention, but the fittings are where most PEX problems start.
The three main types of PEX connections
Expansion fittings (ASTM F1960)

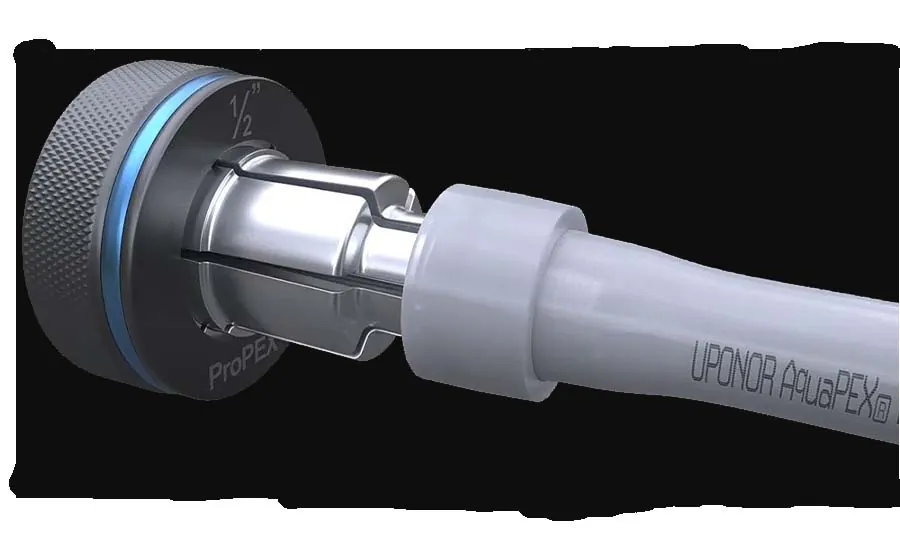

Used with PEX-A tubing. The installer slides a ring over the pipe end, expands the pipe and ring together with a tool, and pushes the fitting in. PEX-A has "shape memory," so it shrinks back down tightly around the fitting within seconds.
- The fitting opening is close to the full inside diameter of the pipe, so it restricts flow very little
- No metal crimp ring to corrode
- The joint gets tighter as it sets
- This is the system we use, with Uponor/Wirsbo tubing and fittings
Crimp and clamp fittings (ASTM F1807 and F2098)
Used mostly with PEX-B. A metal ring or clamp is compressed over the pipe and a barbed insert fitting.
- Common and economical
- The barbed insert is narrower than the pipe, so each fitting reduces flow a little
- Quality depends on the crimp being exactly right. An under- or over-crimped ring can leak, sometimes years later
- Brass inserts can be affected by water chemistry in some areas
Push-to-connect fittings
Push the pipe in and a stainless grip ring holds it. Fast and handy for repairs and tight spots.
- Great for temporary or emergency fixes
- Bulkier and generally a more expensive per-fitting option
- Many plumbers prefer not to bury them in closed walls on a whole-house system
Why fittings matter in Ladera Ranch
Water chemistry. Santa Margarita Water District water carries minerals. Over time, brass inserts in some crimp systems can develop deposits or wear. Plastic and engineered polymer expansion fittings are not affected the same way.
Slab homes. Many Ladera Ranch homes are on slab foundations. A repair under the slab is disruptive. The more reliable the joints overhead, the less likely you will need one.
HOA and resale. Buyers' inspectors increasingly recognize fitting types. A whole-house system in PEX-A with expansion fittings is easy to document.
How to tell what you have
Look where pipe is exposed: under sinks, at the water heater, at the manifold if you have one.
- A thick white or colored ring right at the fitting usually means expansion
- A thin copper or stainless band means crimp or clamp
- A bulky collar with a release ring means push-fit
The pipe itself is usually printed with the type and standard, such as "PEX-A" or "PEX-B" and the ASTM numbers.
What to ask on a repipe quote
- What tubing will you use, PEX-A or PEX-B, and what brand?
- What fitting system, expansion or crimp?
- How are pipes supported and protected where they go through framing?
- Will any fittings be buried in closed walls, and what type?
- What warranty covers the tubing and fittings together?
